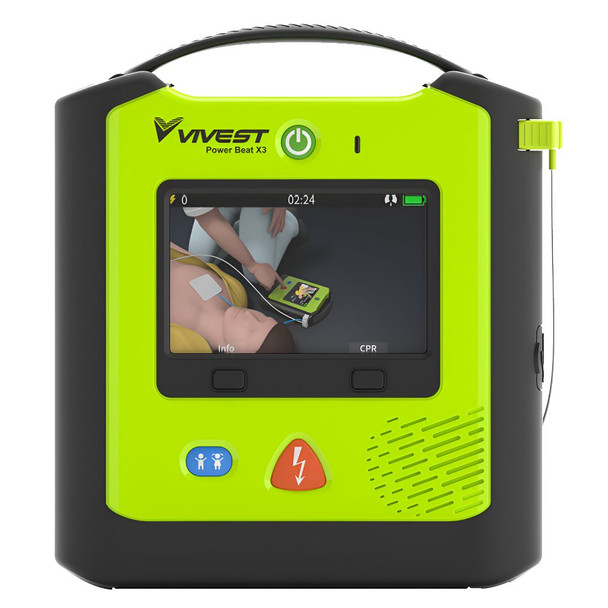

PowerBeat AED X3 Semi-Automatic Defibrillator

Introducing the PowerBeat AED X3 Semi-Automatic Defibrillator.

Experience easy, clear guidance with our 5 inch LCD color-screen that visually instructs users on what to do and how to do it. The voice guidance of POWERBEAT X3 ensures fast, effective, and safe pre-hospital emergency measures, making it perfect for visually impaired and hard of hearing users.

Rest assured with complete reliability. Our defibrillator is daily self-tested, drop tested to 1.5 meters, and IP55 protected without the need for a carry case. Plus, our failsafe button guarantees that the AED is always ready to save lives.

Product Features:

• Slimline and lightweight design
• Simple audio and visual instruction
• Fastest time to shock at 7 seconds
• Impressive battery life of 4 years with up to 200 shocks
• Smart Pads that allow for biphasic shock
• CPR features with metronome for precise chest compressions
• Algorithm capable of detecting implants such as pacemakers and internal defibrillators
• Automated ECG recording of up to 8 hours
• Daily self-testing to ensure device readiness
• IP55 protection against dust and wet environments
• Drop tested to 1.5 meters for durability
• Multi-language functionality
• Shock button with built-in failsafe button to minimize risk of failure
• Able to identify a pulse and make the decision not to shock

Product Specifications:

• Model: Powerbeat X3
• Size: 23.2 x 20.9 x 5.9 cm
• Color display: Yes
• On click language switch: Yes
• Protection grade: IP55
• Daily self check: Yes
• Battery life: 4 years

What's included:

• Defibrillator
• Battery (12V/3000mAH, LiMnO2, not rechargeable)
• Electrode Pads
• Manual

Discover the PowerBeat AED X3 - the reliable, easy-to-use defibrillator that brings life-saving power to your hands.

Further details:

Defibrillator

• Waveform: Biphasic Truncated Exponential (BTE) Waveform
• Impedance Range: 20 - 180Ω
• Energy Level: Adults, energy released at 50Ω impedance: 150J CPR
• Coaching: CPR instructions are available,with metronome and hand placement instructions.
• CPR Protocal: Comply with AHA 2020 guideline.
• Charge/Discharge Time: The time from the prompt of “Shock Advised” to when the shock can be performed: 7 seconds

Arrhythmia Analysis

• Accuracy: Comply with IEC60601-2-4
• Analysis Time: Typically 8 seconds

Controls

• Shock Control: Semi-automatic (press the shock button to deliver energy)
• Language Button (PowerBeat X3): Users can switch between primary and secondary language among various available language options.
• Certification: ISO13485, CE certification
• Safety Standard:
• IEC 60601-1:2005+A1:2012
• IEC 60601-2-4:2010+AMD1:2018
• IEC 60601-1-2:2014 IEC 60601-1-12:2014

User Interface

• Display: PowerBeat X1 has
• 114 mm (W)x87 mm (A) graphic panel, while PowerBeat X3 has
• 5 inches color LCD screen, 105 mm (W)x65 mm (BF),
• Resolution: 800x480 pixels
• User Guidance: PowerBeat X1 has LED lights, graphic panel and voice prompt, while Powerbeat X3 has a color LCD screen, animation, voice and bilingual text prompts.
• Volume Adjustment: Volume is adjustable through APP.
• Device Status Indicator: Visual and audible indicators help to monitor the status of the main device, electrodes, and battery. Flashing green light indicates the device ts normal. Flashing red light indicates the device is faulty.

Environmental Parameters

• Operating/Storage Temperature: 5°C ~ +50°C
• One Hour Operating Temperature Limit (extreme cold): -20°C
• Short-term Storage/Transport Temperature: -40°C~+70C, within one week, with battery and pads uninstalled.
• Atmospheric Pressure: 59.4KPa~106KPa
• Relative Humidity: 5%~95% (no condensation)
• Ingress Protection: IP55

Physical Characteristics (including handle)

• Height: 232mm
• Width: 209mm
• Depth: 59mm
• Weight: 1.5kg (including battery and pads) Tolerable
• Impact/Fall Damage: Can withstand free fall damage from a height of 1.5M onto hard surfaces.

Accessories (Battery)

• Type: Lithium manganese dioxide (Li/MnO2} battery (nonrechargeable), 12V/3000mAh
• Capacity: At 20°C±2°C, the new battery can discharge 200±10 times at 150J.
• Operation Life (standby): 4 years (typical) Low Battery Status: A battery that indicates low battery can still be used ≥10 times at 150J.

Accessories (Pads)

• Pads: Suitable for adults.
• Operation Life (standby): 4 years (typical)
• Cable Length: 1.140.1m
• Storage Space: Pads can be stored in the space at the back of the device.

Data Storage

• Memory Type: Internal digital memory
• ECG/Event Storage: At least 8 hours of ECG and event/ incident recording.
• Self-test Data Storage: Up to 10 years

Communications Overall Device

• Communications: USB interface
• Date of Production: See label at the bottom of main device.
• Warranty: 8 years.
