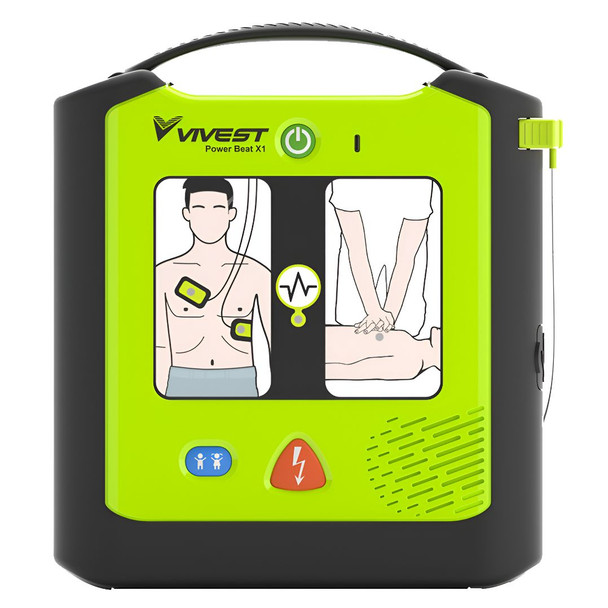

PowerBeat AED X1 Semi-Automatic Defibrillator

Introducing the PowerBeat AED X1 Semi-Automatic: The Ultimate Portable Device

Say hello to the PowerBeat X1 AED, the truly "mobile" device that is slimline, lightweight, and can fit into any bag. Take it with you to any location and be prepared to save lives.

Experience accurate diagnosis and clear display with this cutting-edge AED. The LED lighting and loud verbal commands provide clear guidance to the user, ensuring the patient has the best chance of survival.

You can rely on the PowerBeat X1 AED. It undergoes daily self testing, can withstand drops from 1.5 meters, and is IP55 protected without the need for a carry case. Plus, it has a failsafe button to ensure it's always ready for action.

Product Highlights:

• Slimline and lightweight design (H 23.2 x W 20.9 x D 5.9, 1.5KG)
• Simple audio and visual instructions for easy use
• Time to shock in just 7 seconds
• Battery life of 4 years and capable of up to 200 shocks
• CPR features with metronome
• Able to detect implants like pacemakers and internal defibrillators
• Automated ECG recording of up to 8 hours
• Daily self check ensures readiness
• IP55 protection against dust and wet environments
• Drop tested to 1.5 meters
• Multi-language support
• Built-in failsafe button for added safety
• Able to identify a pulse and make informed decisions

Product Model: Powerbeat X1

• Size: 23.2 x 20.9 x 5.9 cm
• Colour Display: No
• Language Switch: No
• Protection Grade: IP55
• Daily Self Check: Yes
• Battery Life: 4 years

What's included:

• Defibrillator
• Battery (12V/3000mAH, LiMnO2, not rechargeable)
• Electrode Pads
• Manual

Don't miss out on the ultimate portable AED. Get your PowerBeat X1 AED today and be prepared to save lives anywhere, anytime.

Further information:

Defibrillator

• Waveform: Biphasic Truncated Exponential (BTE) Waveform
• Impedance Range: 20 - 180Ω
• Energy Level: Adults, energy released at 50Ω impedance: 150J CPR
• Coaching: CPR instructions are available,with metronome and hand placement instructions.
• CPR Protocal: Comply with AHA 2020 guideline.
• Charge/Discharge Time: The time from the prompt of “Shock Advised” to when the shock can be performed: 7 seconds.

Arrhythmia Analysis

• Accuracy: Comply with IEC60601-2-4
• Analysis Time: Typically 8 seconds

Controls

• Shock Control: Semi-automatic (press the shock button to deliver energy)
• Language Button (PowerBeat X3): Users can switch between primary and secondary language among various available language options. Certification: ISO13485, CE certification Safety Standard:
• IEC 60601-1:2005+A1:2012
• IEC 60601-2-4:2010+AMD1:2018
• IEC 60601-1-2:2014
• IEC 60601-1-
• 12:2014

User Interface

• Display: PowerBeat X1 has
• 114 mm (W)x87 mm (A) graphic panel, while PowerBeat X3 has
• 5 inches color LCD screen, 105 mm (W)x65 mm (BF),
• Resolution: 800x480 pixels
• User Guidance: PowerBeat X1 has LED lights, graphic panel and voice prompt, while Powerbeat X3 has a color LCD screen, animation, voice and bilingual text prompts.
• Volume Adjustment: Volume is adjustable through APP.
• Device Status Indicator: Visual and audible indicators help to monitor the status of the main device, electrodes, and battery. Flashing green light indicates the device ts normal. Flashing red light indicates the device is faulty.

Environmental Parameters

• Operating/Storage Temperature: 5°C ~ +50°C
• One Hour Operating Temperature Limit (extreme cold): -20°C
• Short-term Storage/Transport Temperature: -40°C~+70C, within one week, with battery and pads uninstalled.
• Atmospheric Pressure: 59.4KPa~106KPa
• Relative Humidity: 5%~95% (no condensation)
• Ingress Protection: IP55

Physical Characteristics (including handle)

• Height: 232mm
• Width: 209mm
• Depth: 59mm
• Weight: 1.5kg (including battery and pads) Tolerable Impact/Fall Damage: Can withstand free fall damage from a height of 1.5M onto hard surfaces.

Accessories (Battery)

• Type: Lithium manganese dioxide (Li/MnO2} battery (nonrechargeable), 12V/3000mAh
• Capacity: At 20°C±2°C, the new battery can discharge 200±10 times at 150J.
• Operation Life (standby): 4 years (typical) Low Battery Status: A battery that indicates low battery can still be used ≥10 times at 150J.

Accessories (Pads)

• Pads: Suitable for adults.
• Operation Life (standby): 4 years (typical)
• Cable Length: 1.140.1m
• Storage Space: Pads can be stored in the space at the back of the device.

Data Storage

• Memory Type: Internal digital memory
• ECG/Event Storage: At least 8 hours of ECG and event/ incident recording.
• Self-test Data Storage: Up to 10 years

Communications Overall Device

• Communications: USB interface
• Date of Production: See label at the bottom of main device.
• Warranty: 8 years.
