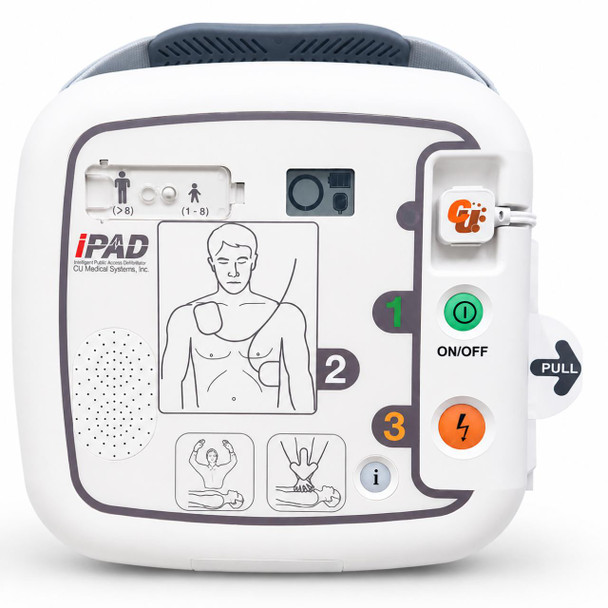

iPAD SP1 Semi-Automatic Defibrillator

The iPAD SP1 Semi-Automatic Defibrillator from CU Medical Systems is an easy-to-use AED designed to provide clear guidance throughout a cardiac arrest emergency. The device automatically analyses the patient's heart rhythm and, when a shock is required, instructs the rescuer to press the flashing shock button.

Suitable for both adults and children, the iPAD SP1 uses the same pre-connected electrode pads for both. A protected adult/paediatric selector changes the operating mode and reduces the energy level for a child without requiring separate paediatric pads.

Clear illuminated illustrations and calm voice prompts guide the rescuer through each stage. An ambient noise detector automatically adjusts the volume of the voice prompts to help instructions remain audible in noisy environments.

Why Choose the iPAD SP1?

• Simple semi-automatic operation - analyses the heart rhythm and tells the rescuer when to press the shock button
• Adult and child use - change between modes without changing electrode pads
• Pre-connected SMART pads - ready for use without having to connect pads first
• Clear rescue guidance - illuminated visual instructions and voice prompts
• Automatic volume adjustment - detects background noise and adjusts voice prompts accordingly
• CPR support - CPR detection and metronome help guide chest compressions
• Easy readiness checks - indicators display AED, battery and electrode pad status
• IP55 protection - provides protection against dust and water ingress
• Long warranty - 7 years as standard, extended to 10 years following registration

iPAD SP1 Key Specifications

• Manufacturer: CU Medical Systems
• Model: CU-SP1
• AED type: Semi-automatic
• Adult and child use: Yes
• Electrode pads: Pre-connected adult/paediatric pads
• Adult shock energy: 150 J
• Paediatric shock energy: 50 J
• CPR guidance: Voice prompts, visual guidance, CPR detection and metronome
• IP rating: IP55
• Dimensions: 260 x 256 x 69.5 mm
• Weight: 2.4 kg including battery and pads
• Operating temperature: 0°C to 43°C
• Operating humidity: 5% to 95%, non-condensing
• Drop resistance: 1.2 metres
• Battery type: Disposable lithium manganese oxide
• Battery capacity: At least 200 shocks
• Battery standby life: Up to 5 years
• Electrode pad life: Up to 3 years*
• Data storage: Up to 5 events, with up to 3 hours per event
• Warranty: 7 years as standard; 10 years following registration

*Always check the expiry date printed on the supplied electrode pads.

Adult and Paediatric Use

The iPAD SP1 uses pre-connected dual-use adult and paediatric electrode pads, allowing the same set of pads to be used for either an adult or child.

For a child, the protective cover is lifted and the AED is changed to paediatric mode using the selector switch. There is no need to find and connect a separate set of child pads.

The SP1 delivers 150 J in adult mode and 50 J in paediatric mode and can be used with the appropriate paediatric setting for children aged 1 year and over.

This makes the SP1 particularly practical for locations where both adults and children may be present.

Semi-Automatic Operation and CPR Guidance

The iPAD SP1 automatically analyses the patient's heart rhythm and determines whether a shock is required.

If a shockable rhythm is detected, the AED charges and instructs the rescuer to press the flashing orange shock button to deliver the shock.

Voice prompts and illuminated graphics provide instructions throughout the rescue. CPR detection and an integrated metronome provide additional support during chest compressions.

Automatic Volume Adjustment

Cardiac arrest emergencies can occur in noisy environments such as schools, workplaces, sports facilities and public areas.

The iPAD SP1 incorporates an ambient noise detector that monitors the surrounding noise level and automatically adjusts the volume of its voice prompts, helping the rescuer hear the instructions clearly.

Easy AED Readiness Checks

The iPAD SP1 provides clear information about the condition of the AED, battery and electrode pads.

Status indicators make routine checks straightforward, while the AED performs regular automatic self-tests of important components including the battery, electrode pads and internal circuitry.

The SP1 also monitors its electrode pads, helping identify when they require replacement.

IP55 Protection

The iPAD SP1 has an IP55 ingress protection rating, providing protection against dust and water jets.

It is also designed to withstand a 1.2 metre drop and operates in temperatures between 0°C and 43°C, making it suitable for a wide range of workplace and public-access environments.

Where Can the iPAD SP1 Be Used?

The combination of semi-automatic operation, adult and child capability, clear rescue guidance and robust construction makes the iPAD SP1 suitable for locations including:

• Schools and colleges
• Offices and workplaces
• Sports clubs and leisure facilities
• Community locations
• Retail environments
• Hotels and hospitality venues
• Dental practices
• Public-access AED locations

Its ability to use the same electrode pads for adults and children is particularly useful in locations where people of different ages may be present.

What's Included?

The iPAD SP1 Semi-Automatic Defibrillator is supplied with:

• iPAD SP1 Semi-Automatic Defibrillator
• Protective carrying case
• Disposable lithium manganese oxide battery
• One set of pre-connected adult/paediatric electrode pads
• AED responder kit

Battery and Electrode Pads

The SP1 uses a disposable lithium manganese oxide battery with a capacity of at least 200 shocks and a standby life of up to five years.

The pre-connected electrode pads can be used for either adults or children, removing the need to maintain a separate set of paediatric pads.

The SP1 monitors the electrode pads as part of its readiness checks and provides information about their condition. Always replace pads after use or by the expiry date shown on the pad packaging.

Warranty

The iPAD SP1 is supplied with a 7-year manufacturer's warranty as standard, which can be extended to 10 years following registration, subject to the manufacturer's registration and warranty terms.
