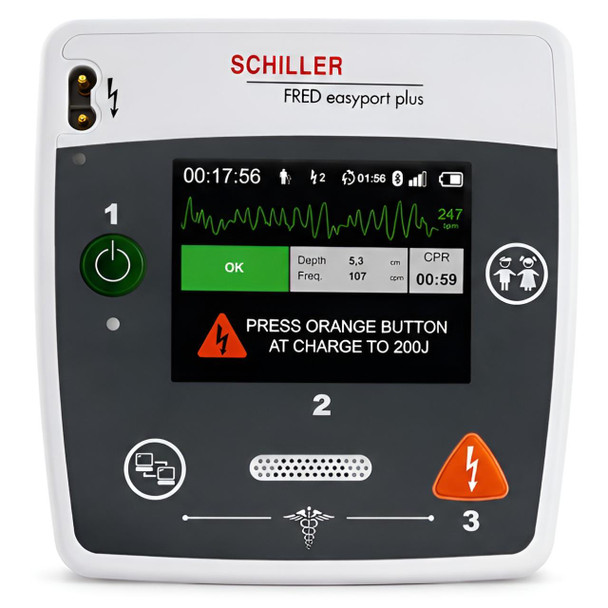

Schiller FRED Easyport Plus Semi-Automatic Defibrillator

The Schiller FRED easyport plus Semi-Automatic Defibrillator combines an exceptionally compact, lightweight design with a large colour screen and clear step-by-step rescue guidance. Weighing just 780g, it is designed to provide advanced AED functionality in a highly portable unit.

A simple 1-2-3 workflow, spoken instructions and visual guidance lead the rescuer through the emergency. The same electrodes can be used for adults and children, with a dedicated button switching the defibrillator into paediatric mode.

Why Choose the SCHILLER FRED easyport plus?

• Exceptionally lightweight - weighs only 780g
• Pocket-sized design - just 150 x 143 x 46 mm
• Semi-automatic operation - the rescuer confirms shock delivery
• Large colour LCD screen - provides clear visual information throughout use
• Adult and child use - switch to paediatric mode while using the same electrodes
• CPR guidance - integrated metronome supports chest compression rhythm
• Pre-connected electrodes - designed to reduce preparation time
• Automatic screen brightness - adjusts the colour display to surrounding conditions
• Regular automatic self-tests - operational status is indicated by the flashing on/off button
• IP44 protection - resistant to splashing water

Schiller FRED easyport plus Key Specifications

• Manufacturer: SCHILLER
• Model: FRED easyport plus
• AED type: Semi-automatic
• Adult use: Yes
• Paediatric use: Yes - dedicated paediatric mode
• Electrode pads: Same electrodes for adult and paediatric use
• CPR guidance: Integrated metronome
• Display: Large colour LCD
• IP rating: IP44
• Dimensions: 150 x 143 x 46 mm
• Weight: 780g
• Battery: Primary or rechargeable battery
• Self-testing: Regular automatic self-tests
• Data transfer: Wi-Fi and USB
• ECG: 2-lead ECG signal mode

Compact and Lightweight

At just 780g, the FRED easyport plus is exceptionally light for a defibrillator with a colour display and advanced functionality.

Its compact 150 x 143 x 46 mm dimensions make it particularly easy to carry, helping make the defibrillator readily accessible when responding to an emergency.

Clear 1-2-3 Rescue Guidance

The FRED easyport plus uses a straightforward three-step interface, combining illustrations with spoken instructions to guide the rescuer through operation.

The large colour LCD screen automatically adjusts its brightness according to surrounding conditions, helping ensure important instructions remain clearly visible.

The semi-automatic version analyses the patient's heart rhythm and requires the rescuer to confirm delivery of an advised shock.

Adult and Paediatric Treatment

The FRED easyport plus provides an integrated paediatric mode without requiring separate child electrodes.

The same electrodes can be used, with a dedicated button switching the defibrillator into paediatric mode. This simplifies readiness for locations where the AED may need to be used on either an adult or child.

CPR Guidance

An integrated metronome helps the rescuer maintain the correct rhythm during chest compressions.

The FRED easyport plus can also support SCHILLER's ARGUS LifePoint CPR feedback sensor, providing audible and visual guidance on compression depth, rate and recoil when the sensor is used.

Automatic Self-Testing

The FRED easyport plus carries out regular automatic self-tests to monitor its operational readiness.

Device status is indicated through the flashing on/off button, providing a straightforward visual readiness check.

Where Can the SCHILLER FRED easyport plus Be Used?

Its exceptionally compact dimensions and low weight make the FRED easyport plus particularly suitable where portability is important, including:

• Emergency and first-response teams
• Healthcare environments
• Mobile and travelling personnel
• Sports and leisure facilities
• Workplaces
• Schools and education
• Hotels and hospitality
• Public-access AED locations

Warranty

The SCHILLER FRED easyport plus is supplied with a 1-year warranty.
