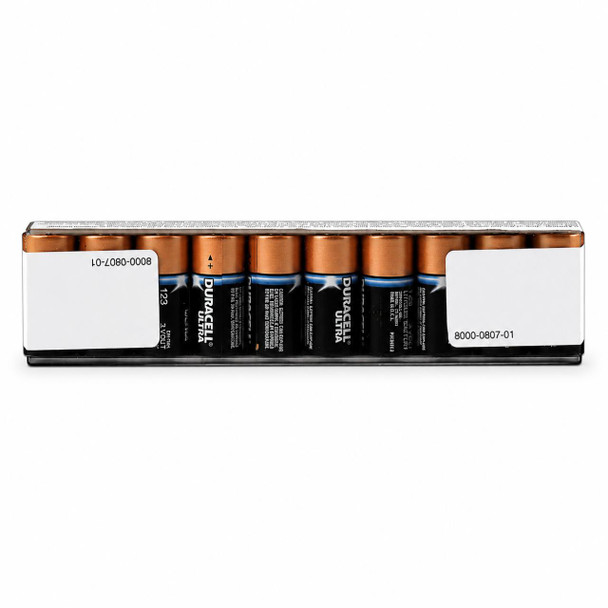

Zoll AED Plus batteries (roll of 10)

The ZOLL AED Plus Replacement Batteries - Pack of 10 provide a complete replacement battery set for the ZOLL AED Plus defibrillator.

The AED Plus uses 10 Type 123A lithium batteries, which are installed together to power the defibrillator, its automatic self-tests and emergency operation.

When new and installed under normal conditions, ZOLL specifies a typical 5-year standby life, with capacity for approximately 225 shocks at maximum energy or around 13 hours of continuous monitoring.

• Why Choose ZOLL AED Plus Replacement Batteries?
• Complete pack of 10 batteries for one ZOLL AED Plus
• Duracell Type 123A lithium batteries
• Typical 5-year standby life when installed
• Approximately 225 shocks at 200 J
• Around 13 hours of continuous monitoring
• Lithium manganese dioxide chemistry
• User-replaceable battery system
• Designed for ZOLL AED Plus defibrillators

Five-Year Battery Life

ZOLL specifies a typical 5-year standby life for a new set of batteries installed in the AED Plus under normal operating conditions.

Battery life is affected by factors including AED use, self-testing and environmental conditions.

The AED Plus continuously monitors battery capacity and displays a red X and provides a battery warning when replacement is required.

Battery Capacity

A new set of 10 batteries provides typical capacity for:

• 225 ±5 shocks at the maximum 200 J energy level, or
• Approximately 13 hours of continuous monitoring.

These figures are based on new batteries under specified test conditions.

Replace All 10 Batteries Together

The ZOLL AED Plus requires 10 batteries.

When replacing the batteries, the complete set should be replaced together using batteries from the same recommended manufacturer rather than mixing old and new cells.

Follow the battery replacement instructions supplied with your AED Plus to ensure the device correctly recognises the new battery set.

Compatibility

These batteries are designed for:

• ZOLL AED Plus Semi-Automatic Defibrillator
• ZOLL AED Plus Fully-Automatic Defibrillator

They are not the replacement battery for the ZOLL AED 3, which uses a dedicated battery pack.

Product Specifications

• Manufacturer: Duracell
• For use with: ZOLL AED Plus
• RAP / ZOLL reference: 8000-0807-01
• Battery type: Type 123A lithium
• Battery chemistry: Lithium manganese dioxide
• Quantity: 10 batteries
• Typical installed standby life: 5 years
• Typical shock capacity: 225 ±5 shocks at 200 J
• Monitoring capacity: Approximately 13 hours
• Rechargeable: No

What's Included?

• 10 Duracell Type 123A lithium batteries.
