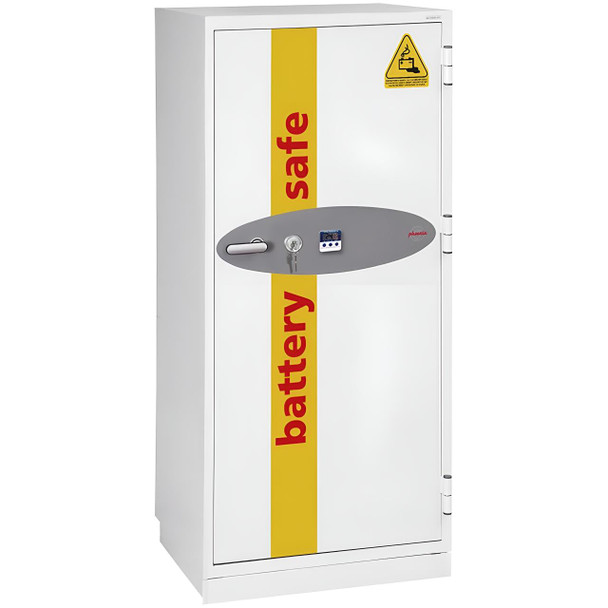

Phoenix Battery Commander BS1932K – Size 2 with Key Lock

Features overview

• 90-minute fire protection: tested to EN14470-1 (Part 1) for fire-resistant storage.
• Designed for lithium-ion battery safety: helps protect life, buildings and assets from the effects of battery fires.
• Safe storage and charging solution: suitable for holding and charging larger volumes of lithium-ion batteries.
• Ventilation with thermal fuse protection: air ducts seal automatically at 75°C in the event of fire.
• Internal temperature monitoring: external display provides an accurate internal temperature reading and early warning of overheating.
• Auto-closing and auto-locking door: helps ensure the cabinet remains securely sealed when needed.
• Key lock with two keys: simple, secure access control.
• Heavy-duty adjustable shelving: 3 perforated shelves, each capable of carrying up to 100kg.

The Phoenix Battery Commander BS1932K is a high-performance lithium-ion battery storage and charging cabinet designed to help protect people, buildings and workplaces from the devastating effects of battery fires. Lithium-ion batteries can present serious risks, including thermal runaway, which may be triggered by rising temperature, impact damage or faulty manufacture. Once ignited, these fires can be extremely difficult to extinguish, making safe storage and early risk control essential.

Built for workplaces storing and charging higher volumes of batteries, the BS1932K offers 90-minute fire protection tested to EN14470-1 (Part 1). It has also been fire and impact tested from 9.1 metres, helping demonstrate resistance to the impact of falling through burning floors during a building fire.

The cabinet is fitted with standard air ventilation ducts, protected by a thermal fuse that triggers at 75°C. This seals the unit in the event of an internal battery fire or external building fire. For added heat control during charging, an external extraction fan can be connected to the top exit vent duct for forced extraction, which is strongly recommended where batteries are charged inside the cabinet.

For additional safety, the BS1932K includes an external temperature display, giving an accurate reading of the internal cabinet temperature and providing early warning of potential battery overheating. The door is fitted with auto-closing and auto-locking functionality, while the advanced multipoint locking system helps keep the door securely sealed—even in severe battery explosion scenarios.

Inside, the cabinet is supplied with 3 heavy-duty perforated, height-adjustable shelves and an internal base sump. It also includes 1 surge-protected 8-gang power block as standard, with the option to add up to 3 further power blocks to the pre-wired control boxes.

Key benefits

• Tested to EN14470-1 (Part 1) for 90 minutes of fire protection
• Fire and impact tested from 9.1m
• Designed for the safe storage and charging of lithium-ion batteries
• Thermal fuse-protected ventilation seals at 75°C
• External temperature display for early warning of overheating
• Auto-closing and auto-locking door for improved safety
• High-quality key lock supplied with 2 keys
• Advanced multipoint locking system to keep the cabinet sealed
• Double-wall construction with patented Styronite F insulation
• Supplied with 1 surge-protected 8-gang power block
• Optional extra power blocks can be added to pre-wired control boxes
• Heavy-duty perforated adjustable shelves, each rated up to 100kg
• Internal base sump fitted as standard

Typical applications

• Workplaces storing multiple lithium-ion batteries
• Tool stores and maintenance departments
• Warehouses and industrial facilities
• Construction and contractor environments
• Schools, colleges and universities
• Facilities management teams
• Battery charging and controlled storage areas

Specifications

• Model: BS1932K Battery Commander
• Size: Size 2
• Lock type: Key lock
• External dimensions (H × W × D): 1685 × 690 × 650mm
• Internal dimensions (H × W × D): 1505 × 510 × 440mm
• Door swing: 470mm
• Handle depth: 40mm
• Unpacked weight: 340kg
• Capacity: 338 litres
• Shelves: 3
• Doors: 1
• Power: 1 × surge-protected 8-gang power block included
• Fire protection: EN14470-1 (Part 1), 90 minutes
• Ventilation: air ventilation ducts with 75°C thermal fuse

Safety note

Lithium-ion batteries should always be stored and charged in line with your fire risk assessment, battery manufacturer instructions and workplace procedures. Damaged, swollen, overheating or suspect batteries should be isolated immediately and managed according to your emergency response plan.
